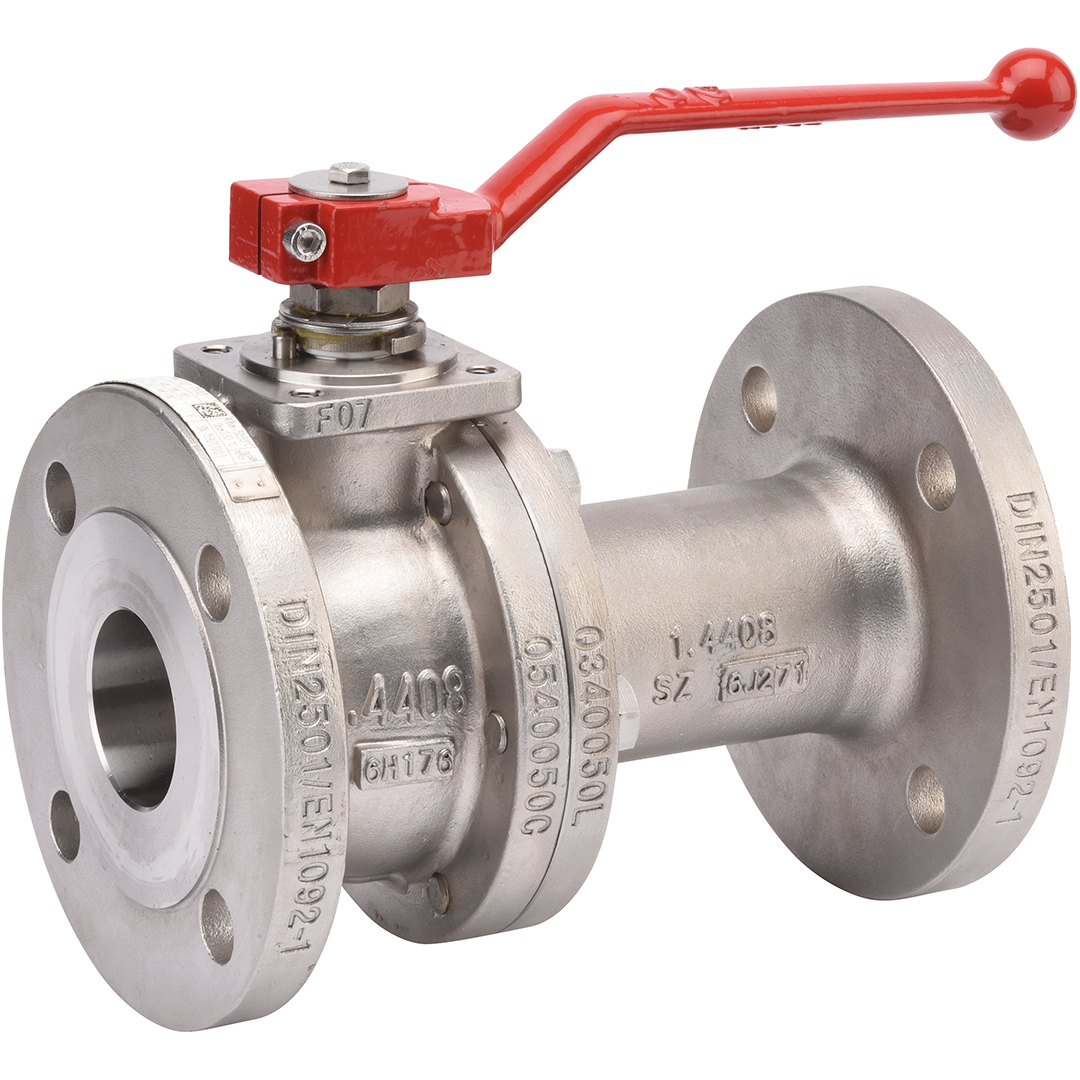

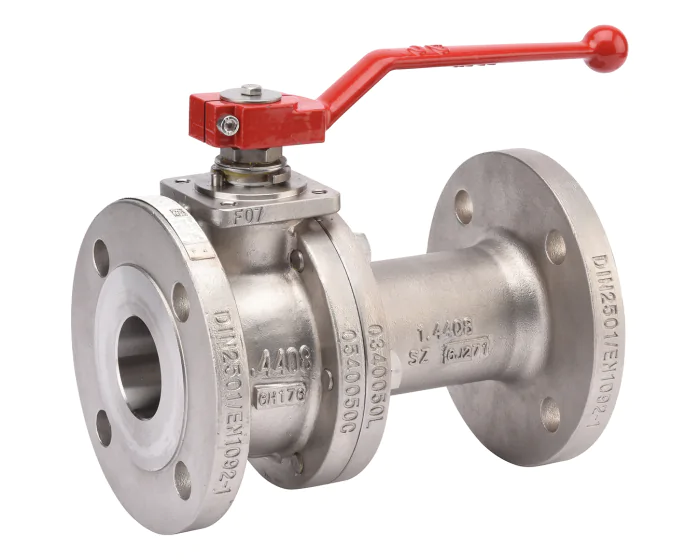

The 316/340IICG series ball valve, 2-piece body, graphite PTFE seats, short DIN, stainless steel body with PN40/16 flanges, fire safety, tightness ensured by FKM O-ring.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| NACE MR0175 | Yes |
| Fire safe standard | ISO 10497:2004. API 607 V5. API 6FA. BS 6755-2 |
| SIL | SIL 3 |
| EN face-to-face standard | EN 558 Series 1 |
| DIN face-to-face standard | DIN 3202 F1 |
| Brand | JC VALVES |
| Antistatic device | Yes |
| Steam | Yes |
| Degassing hole | Yes |
| Opening device | Handle |
| Fugitive emissions standard | ISO 15848-1 |
| ATEX compatible | Yes |
| DN | DN65 - 2''1/2 |
| Face to Face (mm) | 290 |
| Fluid | Hydrocarbons. gas |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | Yes |
| Packing gland | Yes |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| Seats | PTFE-Graphite |
| TS max (°C) | 260 |
| TS min (°C) | -50 |
| Ball valve design | Split body |
| Warranty period | 5 years |
| Handle type | Red lever |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN65 - 2''1/2 | 316IICG065 | S1007054 |
€851.27
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN80 - 3'' | 316IICG080 | S1007055 |
€1,214.66
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN100 - 4'' | 316IICG100 | S1007056 |
€1,654.27
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN125 - 5'' | 316IICG125 | S1007057 |
€3,112.31
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN150 - 6'' | 316IICG150 | S1007058 |
€4,248.74
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN200 - 8'' | 316IICG200 | S1007059 |
€8,919.31
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN15 - 1/2'' | 340IICG015 | S1007060 |
€199.00
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN20 - 3/4'' | 340IICG020 | S1007061 |
€247.34
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN25 - 1'' | 340IICG025 | S1007062 |
€293.39
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN32 - 1''1/4 | 340IICG032 | S1007063 |
€418.51
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN40 - 1''1/2 | 340IICG040 | S1007064 |
€493.39
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN50 - 2'' | 340IICG050 | S1007065 |
€659.83
(excl. btw)
|
add to cart |
